POC-500 Neousys AMD Ryzen V1000 Ultra Compact Embedded Controller

POC-500

Starting at $1,200.00

  • AMD Ryzen™ embedded V1000 series quad-core 15W/ 45W CPU
  • -25°C to 70°C rugged wide-temperature operation
  • Four Gigabit PoE+ ports with screw-lock
  • Four USB 3.0 ports with screw-lock
  • M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access
  • DP + VGA dual display outputs
  • Front I/O access and DIN-rail mounting design
  • MezIO™ compatible
PDF Document - POC-500 Data Sheet
POC-500 Data Sheet
(Size: 2.5 MB)
PDF Document - POC-500 User Manual
POC-500 User Manual
(Size: 4.2 MB)

System Configuration


* Selection required

Your Configuration
Neousys AMD Ryzen V1000 Ultra-Compact industrial PC
POC-500 Neousys AMD Ryzen V1000 Ultra Compact Embedded Controller

In stock

$1,200.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

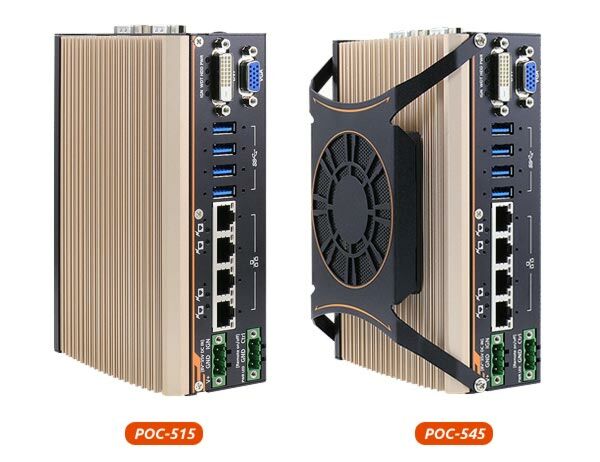

POC-500 series is the next generation ultra-compact embedded controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1000 4-core/ 8-thread processor, it delivers up to 3x times the CPU performance over previous POC series. GPU performance wise, it delivers an unheard of 3.6 TFLOPS in FP16 for an ultra-compact form factor embedded controller. Another amazing feat is that it manages to incorporate an M.2 2280 NVMe SSD (PCIe Gen3 x2) to support 2x times the disk read/ write speed over typical 2.5" SATA SSDs. POC-500 series continues the POC series ingenious DIN-rail mounting mechanical design and offers plenty of front-accessible I/Os. Measuring just 64 x 176 x 116 mm (2.5” x 6.9” x 4.6”), it has 4x PoE+ ports, 4x USB 3.0 ports and 4x COM ports. And best of all, all data ports come with screw-lock mechanism so you can be rest assured that cables are always secured. POC-500 series is available in two CPU variants, the V1807B (45W) variant is for high computing power demand and the V1605B (15W) variant is designed for rugged fanless operation. The arrival of POC-500 series signifies a new breed of ultra-compact embedded controller; one with better I/O design, extraordinary ruggedness and significantly more CPU/ GPU oomph for versatile applications.
PDF Document - POC-500 Data Sheet
POC-500 Data Sheet
(Size: 2.5 MB)
PDF Document - POC-500 User Manual
POC-500 User Manual
(Size: 4.2 MB)
Specifications
ManufacturerNeousys
ProcessorPOC-515: AMD Ryzen™ V1605B CPU (4C/ 8T, 2M Cache, 2.0/ 3.6 GHz,12W - 25W TDP)|POC-545: AMD Ryzen™ V1807B CPU (4C/ 8T, 2M Cache, 3.35/ 3.8 GHz,35W - 54W TDP)
GraphicsPOC-515: Vega GPU with 8 compute units|POC-545: Vega GPU with 11 compute units
MemoryPOC-515: Up to 16 GB DDR4-2400 SDRAMby one SODIMM socket|POC-545: Up to 16 GB DDR4-3200 SDRAM by one SODIMM socket
PoEIEEE 802.3at PoE+ on port #1~ 4
Video Port1x VGA connector, supporting 1920 x 1200 resolution|1x DisplayPort connector, supporting 4096 x 2160 resolution
Audio1x 3.5mm jack for mic-in and speaker-out
M.21x M.2 2280 M key NVMe socket (PCIe Gen3 x2)for NVMe SSD installation
Mini PCI-E1x full-size mini PCI Express socket with internal SIM socket
DC Input1x 3-pin pluggable terminal block for 8~35VDC DC input
FanPOC-545: External-accessible 80mm x 80mm fan for system heat dissipation
DimensionPOC-515: 64(W) x116(D) x176(H) mm|POC-545: 81(W) x118(D) x176(H) mm
WeightPOC-515: 1.2kg|POC-545: 1.4kg
Operating Temperature-25°C ~ 70°C*/**
Storage Temperature-40°C ~85°C
Humidity10%~90% , non-condensing
VibrationOperating, MIL-STD-810G, Method 514.6, Category 4
ShockOperating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMCCE/ FCC Class A, according to EN 55032 & EN 55024
CPU Cores4
CPU FamilyAMD Ryzen
Base CPU SpeedUnder 2.0 Ghz, 3.1 to 3.5 GHz
Video OutputDisplay Port, VGA
PoE Ports4
LAN Ports1-4
Serial Ports3-4
USB 3.03-4
Max Memory16 GB
Operating SystemWindows 10, Linux
Effective Memory Speed2666 MHz, 3200 MHz
Form FactorFanless
Native Storage TypeM.2 NVMe SSD
On/IgnitionRemote On/Off
