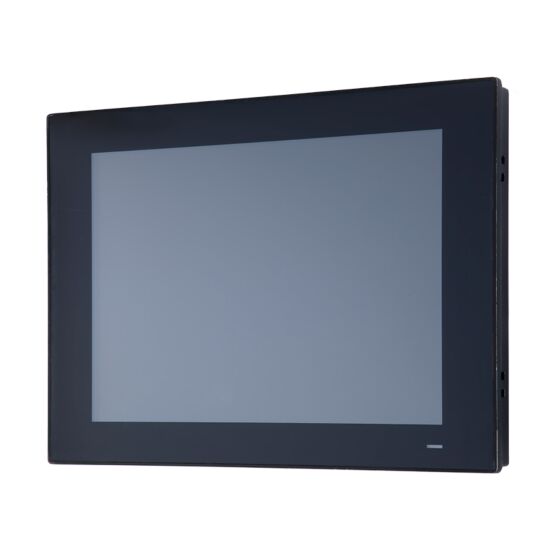

PPC-312 EHL: Fanless 12" Panel PC with Intel Celeron J6412 Processor
PPC-312 EHLStarting at $1,350.00
- Industrial-grade 12" XGA TFT LCD with 30K backlight lifetime
- Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
- Intel Celeron J6412 quad-core, 2.0 GHz, processor
- Up to 32 GB DDR4 SDRAM
- 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
- Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
- Supports E-key for wireless module
- Supports expansion via M.2 slot
- Supports Windows Embedded Linux and Android OS
- Supports VESA 75 x 75 mounting holes
- Dual 2.5GBASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
Frequently Asked Questions
The PPC-312 EHL provides the following I/O:
- 1 x RS-232 (COM1)
- 1 x RS-232/422/485 (COM2, adjustable through BIOS)
- 2 x USB 2.0
- 2 x USB 3.1
- 1 x Type-C (USB only)
- 1 x HDMI 1.4
- 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM / I225-LM)
- 1 x TPM 2.0
The unit accepts 12–30 VDC input. Typical power consumption is 40W, based on a Burn-In Test 8.1 run under Windows 10 (64-bit). Power should be supplied by a UL-certified adapter or DC source rated 12–30 VDC.
Operating temperature range is -10 to 50°C (14 to 122°F); storage temperature is -20 to 60°C (-4 to 140°F). Relative humidity tolerance is 95% at 40°C, non-condensing. The unit is rated for shock (10G peak, 11ms, per IEC 60068-2-27) and vibration (5-500Hz, 2Grms with SSD, per IEC 60068-2-64). Certifications include CE, FCC Class B, BSMI, UKCA, VCCI (EMC) and CB, CCC, UL, UKCA (Safety). The front panel is IP66 compliant.
The PPC-312 EHL supports 1 x DDR4 SDRAM SODIMM at 3200 MHz, up to 32 GB max. Storage options include an optional 2.5" SATA bay (requires bracket module 98R3P300020) and 1 x M.2 slot with M-key for storage, supporting SATA-only 2242 and 2280 form factors.
The PPC-312 EHL supports Microsoft Windows 10 IoT LTSC (64-bit), Windows 11, Linux, and Android.
The unit measures 317 x 246 x 52.7 mm (12.5 x 9.7 x 2.07 in) and weighs 3.16 kg (8.14 lb). It supports VESA 75 x 75 mm mounting holes, and can also be wall mounted, panel mounted, or mounted on an arm or stand using optional accessories.
The unit includes an M.2 2230 E-key slot for a wireless module. An optional PPC-WLAN-D2 module (Wi-Fi 6 + BT 5.2, 2T2R, with antenna) is available for this slot.
The PPC-312-RJ60A uses 5-wire resistive touch with 80±5% light transmission and durability greater than 35 million touches in one location. The PPC-312-PJ60A uses projected capacitive multi-touch with 88±2% light transmission and a cover glass hardness greater than 7H.
COM1 is RS-232 only, with Pin 9 configurable via jumper (JP4) as Ring, 5V, or 12V output. COM2 supports RS-232, RS-422, or RS-485, selectable through BIOS, and does not support a ring function.
How-to Guides
- Remove the 8 screws on the rear cover, then remove the rear cover.
- Insert the memory card into the corresponding slot on the main board.
- Place the provided thermal pad on top of the memory card and CPU, after removing its protective film.
- Remove the screws on the rear cover and remove the cover.
- Gather the components of the SSD bracket module (requires ordering HDD bracket module 98R3P300020).
- Connect the SATA cable from the accessory box to the SATA HDD module.
- Affix the SATA HDD module to the HDD bracket using the four provided screws.
- Affix the SATA HDD bracket to the main board, secure the SATA power cable, and plug it into the corresponding motherboard connector.
- Ensure the rear cover does not press on the SSD cable when reassembled.
- For a 2280 card: assemble the M.2 2280 card onto the motherboard, then apply the provided thermal pad to the card.
- For a 2242 card: install the pillar from the accessory box onto the motherboard, secure the M.2 2242 card with a screw, then apply a thermal pad (an M.2 2280 pad cut in half can be used).
- Remove the rear cover.
- Assemble the antenna bracket onto the antenna cable.
- Assemble the Wi-Fi card with its thermal pad.
- Reassemble the rear cover and install the antenna.
- Use the 2-pin power connector included in the accessory box.
- Connect the power connector to a 12-30 VDC power line rated for the system's requirements.
- Plug the power cable into the system's power receptacle.
- Ensure the DC source complies with ES1 requirements and is evaluated per IEC/UL 60950-1 and/or IEC/UL 62368-1.
- Use 16 AWG minimum wire for the terminal block, torqued to 4.5 lb-in minimum, with copper conductors only. Installation must be performed by a trained and skilled person.
| Manufacturer | Advantech |
|---|---|
| Short Description | PPC-312 EHL is an industrial panel PC with 12.1" XGA LCD, powered by Intel Celeron quad core J6412 processor. With aesthetic aluminum alloy enclosure, PPC-312 EHL ensures fanless reliability and easy maintenance in diverse industrial applications. Moreover, it provides a faster and more flexible connection via 2 x 2.5G Ethernet ports, 2 x USB 3.1 and 1 x Type C (USB only). The PPC-312 EHL is ideal for MES, processing and general industrial equipment integration. |
| CPU Cores | 4 |
| CPU Family | Intel Celeron |
| Base CPU Speed | Under 2.0 Ghz |
| Brightness | 400+ nit |
| Resolution | 1024 x 768 |
| Screen Size | 10.1-15" |
| Video Output | HDMI |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.1 | 1-4 |
| Max Memory | 32 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 3200 MHz |
| Form Factor | Panel PC |
| Native Storage Type | 2.5" SSD, M.2 NVMe SSD |
| Mounting | Wall, Vesa |
| CPU | Intel Celeron J6412 quad core |
| Frequency | 2.0 GHz |
| L2 Cache | 1.5 MB |
| Memory | 1 x SDRAM DDR4 3200 MHz (max. 32G) |
| Storage | 1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x M.2 slot: M key for storage (SATA only, 2242 & 2280) |
| Network (LAN) | 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM) |
| I/O | 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 2 x USB 2.0, 2 x USB 3.1 1 x Type C (USB only) 1 x HDMI1.4 1 x TPM 2.0 |
| Expansion Slots | 1 x M.2 2230 E-key for wireless card |
| Watchdog TImer | 255 timer levels, set up by software |
| Display Type | TFT LCD (LED backlight) |
| Display Size | 12" |
| Max Resolution | 1024 x 768 |
| Luminance | 500 |
| Viewing Angle | 85 (left), 85 (right), 89 (up), 89 (down) |
| Backlight Lifetime | 30,000 hr (min.) |
| Contrast Ratio | 1000 |
| Light Transmission | 5-wire resistive touch: 80±5% at 550 nm wavelength Projected capacitive multi-touch: 88±2% |
| Type | 5-wire resistive touch Projected capacitive multi-touch |
| Controller | USB interface |
| Durability | Greater than 35 million touches in one location without failure |
| Humidity | 95% @ 40 °C (non-condensing) |
| Operating Temperature | -10 ~ 50°C (14 ~ 122°F) |
| Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Shock | Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 |
| Vibration Protection | Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64 |
| EMC | CE, FCC Class B, BSMI, UKCA, VCCI |
| Safety | CB, CCC, UL, UKCA |
| Front Panel Protection | IP66 compliant |
| Power Input Voltage | 12 ~ 30 VDC |
| Power Consumption | 40W (Burn-in test 8.1 in Windows 10, 64-bit) |
| OS Support | Microsoft Windows 10 IOT LTSC(64-bit), Win11, Linux, Android |
| Weight | 3.16 kg (8.14 lb) |
| Dimension | 317 x 246 x 52.7 mm (12.5 x 9.7 x 2.07 in) |
