G4 with 4x GbE
MezIO-G4
Frequently Asked Questions

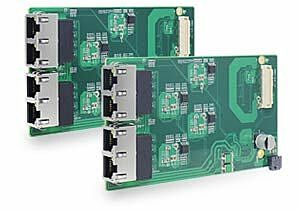

The MezIO-G4 is a 4-port Gigabit Ethernet MezIO™ expansion module. It adds four GbE ports to a compatible host system via the MezIO interface.
The MezIO-G4 provides 4x Gigabit Ethernet ports, implemented with 4x Intel® I210 controllers. The ports support 9.5 kB jumbo frames.
No. The MezIO-G4 does not provide PoE. PoE+ (IEEE 802.3at-2009) support, delivering up to 25.5 W per port, is only available on the related MezIO-G4P module.
Use CAT-5e or CAT-6 cable. The maximum cable length is 100 meters.
The MezIO-G4 is listed as compatible with the Nuvo-7000 series and Nuvo-5000 series.
Both modules provide 4x Gigabit Ethernet ports using Intel® I210 controllers with 9.5 kB jumbo frame support. The MezIO-G4P additionally complies with IEEE 802.3at-2009 (PoE+), delivering up to 25.5 W of power per port. The MezIO-G4 does not have PoE capability.
MezIO™ is an interface for integrating application-specific I/O modules into an embedded system. It provides computer signals, power rails, and control signals through a high-speed connector, and uses a 3-point mounted mezzanine structure for mechanical reliability.
