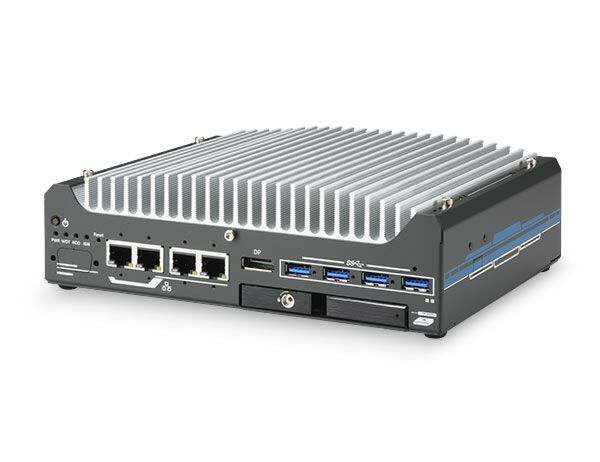

Nuvo-9531: Intel 14th/13th/12th -Gen Core i9/i7/i5/i3 Compact Fanless Computer with 4x 2.5GbE, 4x USB3.2 and 1x Hot Swappable HDD Tray

Nuvo-9531 Series

Starting at $1,300.00

Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 14th-Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th-Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications.

  • 212 x 165 x 63 mm low-profile design
  • Intel 14th/13th/12th -Gen Core 35W/ 65W LGA1700 CPU
  • Rugged, -25°C to 60°C fanless operation
  • 4x 2.5GbE with optional PoE+ and 4x USB3.2 Gen 1 with screw-lock
  • M.2 2280 Gen4x4 NVMe and 1x hot-swappable HDD tray for storage
  • 4-CH isolated DI and 4-CH isolated DO
  • VGA + DP dual display outputs
  • Optional ignition power control
PDF Document - Nuvo-9531 Data Sheet
Nuvo-9531 Data Sheet
(Size: 995.1 KB)
PDF Document - Nuvo-9531 User Manual
Nuvo-9531 User Manual
(Size: 6.4 MB)

System Configuration


* Selection required

Your Configuration
Nuvo-9531: Intel 14th/13th/12th -Gen Core i9/i7/i5/i3 Compact Fanless Computer with 4x 2.5GbE, 4x USB3.2 and 1x Hot Swappable HDD Tray
Nuvo-9531: Intel 14th/13th/12th -Gen Core i9/i7/i5/i3 Compact Fanless Computer with 4x 2.5GbE, 4x USB3.2 and 1x Hot Swappable HDD Tray

In stock

$1,300.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Product Highlight

Nuvo-9531 little giant powerhouse







Ultimate Performance within Compact Size! Fit for Applications that Require High-performance Platforms in Confined Spaces

Neousys Nuvo-9531 is a compact fanless computer based on Intel® 12th-Gen platform. Despite its 212 x 165 x 63 mm dimensions, Nuvo-9531 features Intel 12th-Gen CPU with up to 16 cores to deliver up to 1.8x the performance when compared to Intel 11th-Gen platforms.

Nuvo-9531 has four 2.5GbE with optional PoE+, and four screw-lock USB 3.2 Gen 1 ports to connect to cameras. In addition, it features an NVMe Gen4x4, a hot-swappable HDD tray, and 8-CH isolated DIO ports. It also has two mPCIe and one M.2 E key slots for WiFi or 5G/ 4G wireless communication modules.

Nuvo-9531 is suitable for confined space applications such as in an AMR, robotic arm, or machine vision.



Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 14th-Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th-Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications.

Nuvo-9531 has rich I/O functions. It features four 2.5GbE with optional PoE+ PSE and four USB3.2 Gen1 ports for multiple camera connectivity for machine vision and surveillance applications. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSD that supports read/ write speeds up to 7000 MB/s; a hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis; two mPCIe and one M.2 E key slots to install WiFi or 5G/ 4G wireless communication modules. The system is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your industrial embedded application needs.

As a compact embedded computer, Nuvo-9531 delivers excellent computing performance and offers an abundance of I/O connections. It is suitable for a variety of industrial applications, especially when installation space is limited.

PDF Document - Nuvo-9531 Data Sheet
Nuvo-9531 Data Sheet
(Size: 995.1 KB)
PDF Document - Nuvo-9531 User Manual
Nuvo-9531 User Manual
(Size: 6.4 MB)
Specifications
Product Available OnDec 28, 2022
ManufacturerNeousys
Short Description

Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 14th-Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th-Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications.

ProcessorSupporting Intel 14th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP)
Supporting Intel 13th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP)
Supporting Intel 12th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP)
GraphicsIntegrated Intel® UHD Graphics 770 (32EU)
MemoryUp to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot)
ChipsetIntel® H610E platform controller hub
Video Port

1x VGA output, supporting 1920 x 1200 resolution

1x DisplayPort, supporting 4096 x 2304 resolution

Audio1x 3.5 mm jack for mic-in and speaker-out
DIO4-CH isolated DI and 4-CH isolated DO
Mini PCI-E2x full-size mini PCI Express sockets with internal SIM sockets
SATA HDD1x hot-swappable 2.5" HDD/ SSD tray
DC Input1x 3-pin pluggable terminal block for 8 to 48V DC input
Dimension212mm (W) x 165 mm (D) x 63 mm (H)
Weight2.5 kg
MountingWall-mount (standard) or DIN-rail mount (optional)
Operating Temperature

With 35W CPU -25°C ~ 60°C *
With 65W CPU (installation of the optional fan kit is recommended) -25°C ~ 60°C */**

Storage Temperature-40°C ~ 85°C
Humidity10%~90% , non-condensing
VibrationOperating, MIL-STD-810G, Method 514.6, Category 4
ShockOperating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMCCE/FCC Class A, according to EN 55032 & EN 55035
CPU FamilyIntel Core
Video OutputDisplay Port, VGA
Serial Ports3-4
USB 2.01-2
USB 3.21 - 4
