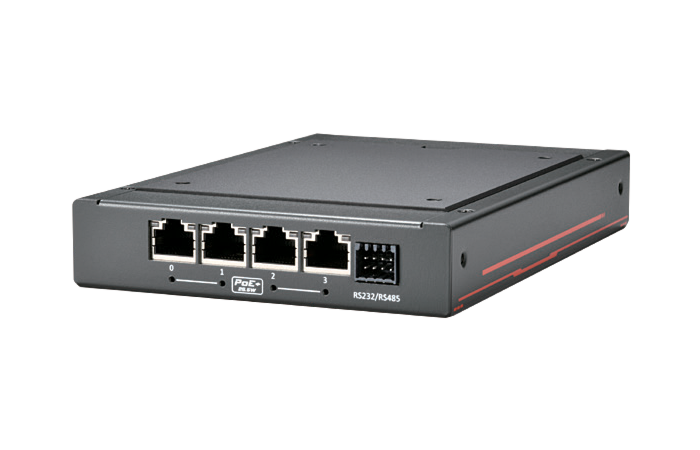

NRU-154PoE-FT: NVIDIA Jetson Orin NX Edge AI Computer with 4x 2.5GbE PoE+
NRU-154PoE-FTStarting at $1,575.00
The NRU-150-FT series is a compact, fanless edge AI computer incorporating Jetson Orin NX and independent 2.5GbE PoE+ camera connectivity. Its special flat-top heatsink is designed to be mounted inside a sealed enclosure to aid metal processing, food processing, smart agriculture, or roadside applications, where it can be protected from environments that contain dust, metal particles, or fluid.
- Powered by NVIDIA Jetson Orin NX bundled with JetPack 5.1
- Flat-top heatsink design for conduction-cooled, in-cabinet deployment
- Up to 100 TOPS AI inference performance
- 4x 2.5GbE PoE+ full-bandwidth ports for camera connectivity
- 1x RS-232 and 1x isolated RS-485
- 1x M.2 2242 M key NVMe for BSP and data storage
- -25°C to 60°C fanless operating temperature (with heat spreader attachment.
- No throttling at 60°C (with Orin NX 20W TDP mode)
Frequently Asked Questions
The NRU-154PoE-FT provides the following interfaces:
- 4x 2.5GBASE-T PoE+ Ethernet ports (screw-lock) for IP/GigE cameras
- 1x Gigabit Ethernet port for development/host use
- 2x USB 2.0 ports
- 1x micro USB (OTG)
- 1x RS-232 port and 1x isolated RS-485 port (via 8-pin terminal block)
- 1x DisplayPort, supporting up to 3840x2160 at 60Hz
- 6-pin 12V DC power input
Each of the 4 Gigabit PoE+ ports complies with IEEE 802.3at and can deliver up to 25.5W per port, with a total power budget of 50W shared across all 4 ports. The ports can auto-detect whether a connected device requires power, so standard (non-PoE) Ethernet devices also work.
The system takes 12V DC input via a 6-pin connector. Pins 1, 3, and 5 carry 12V, and pins 2, 4, and 6 are GND. The DC input is intended for standalone development use or when total power consumption (including PoE loads) exceeds 66W.
The datasheet lists a fanless operating range of -20°C to 60°C (20W TDP mode) while the unit is mounted on a 50 x 50 x 0.2 cm metallic plate; the user manual lists -25°C to 60°C with airflow under the same mounting condition. Without heat conduction through the flattop heatsink, the fanless range is -20°C to 45°C (20W TDP mode). For sub-zero or above-60°C operation, a wide-temperature NVMe SSD is required. Storage temperature is -40°C to 85°C, with humidity of 10% to 90% non-condensing.
Memory is 8GB or 16GB LPDDR5 @3200MHz, fixed on the Jetson Orin NX system-on-module. Storage is via a single M.2 2242 M-key NVMe SSD slot. The datasheet lists this slot as PCIe Gen4 x2, while the user manual describes it as Gen3 x1; refer to the specific SoM/BOM configuration for the exact interface generation. Pre-configured ordering SKUs (NRU-154-JON8/JON16) ship with a 128GB NVMe SSD and pre-installed system image.
The NRU-154PoE-FT ships with JetPack 5.x pre-installed as a turnkey solution. Because the system cannot install its own OS image (like the Jetson Orin NX Developer Kit), reflashing requires a separate host computer connected via a micro USB to USB Type-A cable.
The standard mounting method is wall-mount, using the included wall-mount bracket and screw pack. Dimensions are 116mm (W) x 171mm (D) x 27mm (H), excluding the wall-mount bracket, and the unit weighs 1.0 kg. The flattop heatsink can also be mounted against the inside wall of a sealed enclosure (such as a splash/explosion-proof box) as long as it makes full contact with a metallic surface for heat conduction.
The system is CE/FCC Class A compliant per EN 55032 and EN 55035. It is rated for operating vibration per MIL-STD-810H Method 514.8 Category 4, and operating shock per MIL-STD-810H Method 516.8 Procedure I.
Both share the same Jetson Orin NX SoM, memory options, dimensions, and mounting. The NRU-154PoE-FT features 4x 2.5GbE PoE+ ports for IP/GigE cameras, while the NRU-156U3-FT instead features 6x USB 3.2 ports (2x Gen2 and 4x Gen1) for USB3 industrial cameras and does not provide PoE.
How-to Guides
- Disassemble the enclosure to access the PCB and flattop heatsink (remove top/bottom screws, the connection panel, and the heatsink screws) as described in the System Disassembly procedure.
- Separate the flattop heatsink from the PCB to expose the M.2 2242 M-key slot.
- Insert the M.2 2242 NVMe SSD into the slot at a 45-degree angle.
- Press the SSD down flat and secure it with the mounting screw.
- Remove the thermal pad protective film from the bottom of the heatsink.
- Reassemble the heatsink onto the PCB, reinsert the assembly into the enclosure, and re-secure all screws and the connection panel.
- Locate the 6-pin 12V DC input connector on the onboard system connectivity panel.
- Connect 12V supply lines to pins 1, 3, and 5.
- Connect ground return lines to pins 2, 4, and 6.
- Use this DC input for standalone development, or whenever total system power consumption (including any PoE loads) exceeds 66W.
- Take the wall-mount bracket and screw set from the accessory box.
- Install the bracket onto the NRU-15x-FT system.
- Position the unit so the flattop heatsink side makes full, flat contact with a metallic surface inside the enclosure (for example, a splash/explosion-proof box or junction enclosure) to allow heat to conduct to the enclosure wall.
- Secure the system to the enclosure wall with the provided screws.
- Locate the 8-pin terminal block used for RS-232 and isolated RS-485 signals.
- Wire RS-485 signals to pins 3 (DATA+), 4 (DATA-), and 5 (GND).
- Wire RS-232 signals to pins 7 (TX), 8 (RX), and 6 (GND).
- Confirm connections match your device's serial interface requirements before powering on.
The NRU-150-FT series is a compact, fanless edge AI computer incorporating Jetson Orin NX and independent 2.5GbE PoE+ camera connectivity. Its special flat-top heatsink is designed to be mounted inside a sealed enclosure to aid metal processing, food processing, smart agriculture, or roadside applications, where it can be protected from environments that contain dust, metal particles, or fluid.
Benefiting from the power efficient NVIDIA Jetson Orin NX, the NRU-150-FT series can deliver up to 100 TOPS inference performance in a 25W power package. Offering full bandwidth ports to complement versatile video inputs for edge inspection, NRU-154PoE-FT features 4x 2.5GbE PoE+ ports for IP cameras and industrial GigE cameras.
The flat-top heatsink design further expands application senarios by allowing users to mount the NRU-150-FT series inside a sealed enclosure and conduct the heat to the outer surface, offering a -25 to 60°C wide-temperature fanless operation. It makes NRU-150-FT suitable for environments such as dusty roadsides, humidity farms, and harbors. Moreover, it is also applicable to versatile AI-based factory automation for metal, wood, food, and chemical processing.
By integrating full-bandwidth 2.5GbE PoE+ ports for camera connectivity, 100 TOPS AI inference performance, unique flat-top heatsink for enclosed installation, and a vast array of NVIDIA AI JetPack toolkits, the NRU-150-FT series presents more possibilities for edge inspection in harsh environments, where dustproof, waterproof, or flameproof protection is needed.
AI Frame Grabbers
| Manufacturer | Neousys |
|---|---|
| Short Description |
The NRU-150-FT series is a compact, fanless edge AI computer incorporating Jetson Orin NX and independent 2.5GbE PoE+ camera connectivity. Its special flat-top heatsink is designed to be mounted inside a sealed enclosure to aid metal processing, food processing, smart agriculture, or roadside applications, where it can be protected from environments that contain dust, metal particles, or fluid. |
| Processor | NVIDIA Jetson Orin NX system-on-module (SoM), comprising NVIDIA Ampere GPU and ARM Cortex CPU |
| Memory | 8GB/ 16GB LPDDR5 @ 3200 MHz on SoM |
| PoE | IEEE 802.3at PoE+ PSE for Port 2 to Port 5, 50W total power budget |
| Video Port | 1x DisplayPort, supporting 3840x2160 at 60Hz |
| M.2 | 1x M.2 2242 M key socket (PCIe Gen4 x2) for NVMe SSD |
| DC Input | 12V DC power input |
| Dimension | 116 mm (W) x 171 mm (D) x 27 mm (H) (without wall-mount bracket) |
| Weight | 1.0 kg |
| Mounting | Wall-mount (standard) |
| Operating Temperature | -20°C to 60°C (20W TDP mode) fanless operating temperature while mounted on 50 x 50 x 0.2 cm metallic plate |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90%, non-condensing |
| Vibration | Operating, MIL-STD-810H, Method 514.8, Category 4 |
| Shock | Operating, MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
